Electronic circuits - the Annoizer (555 speaker circuit)

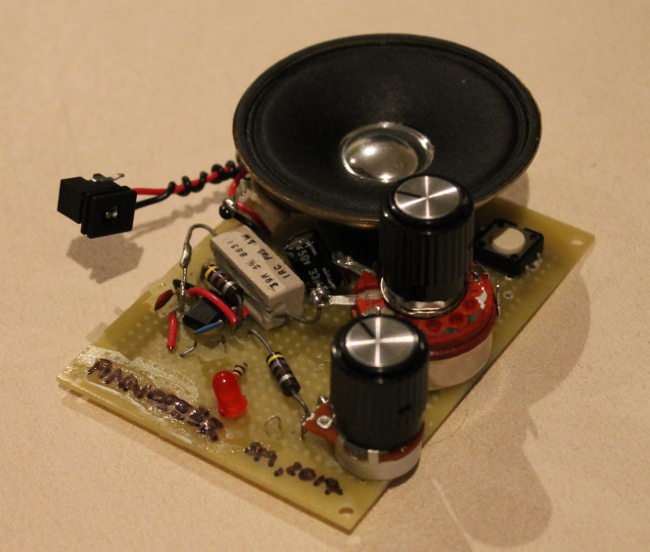

I built the Annoizer with the purpose of practicing my PCB organization and soldering skills. It uses a 555 timer to drive a speaker.
There are controls for sound frequency and volume. There is also a pitch shift button, for basic effects.
